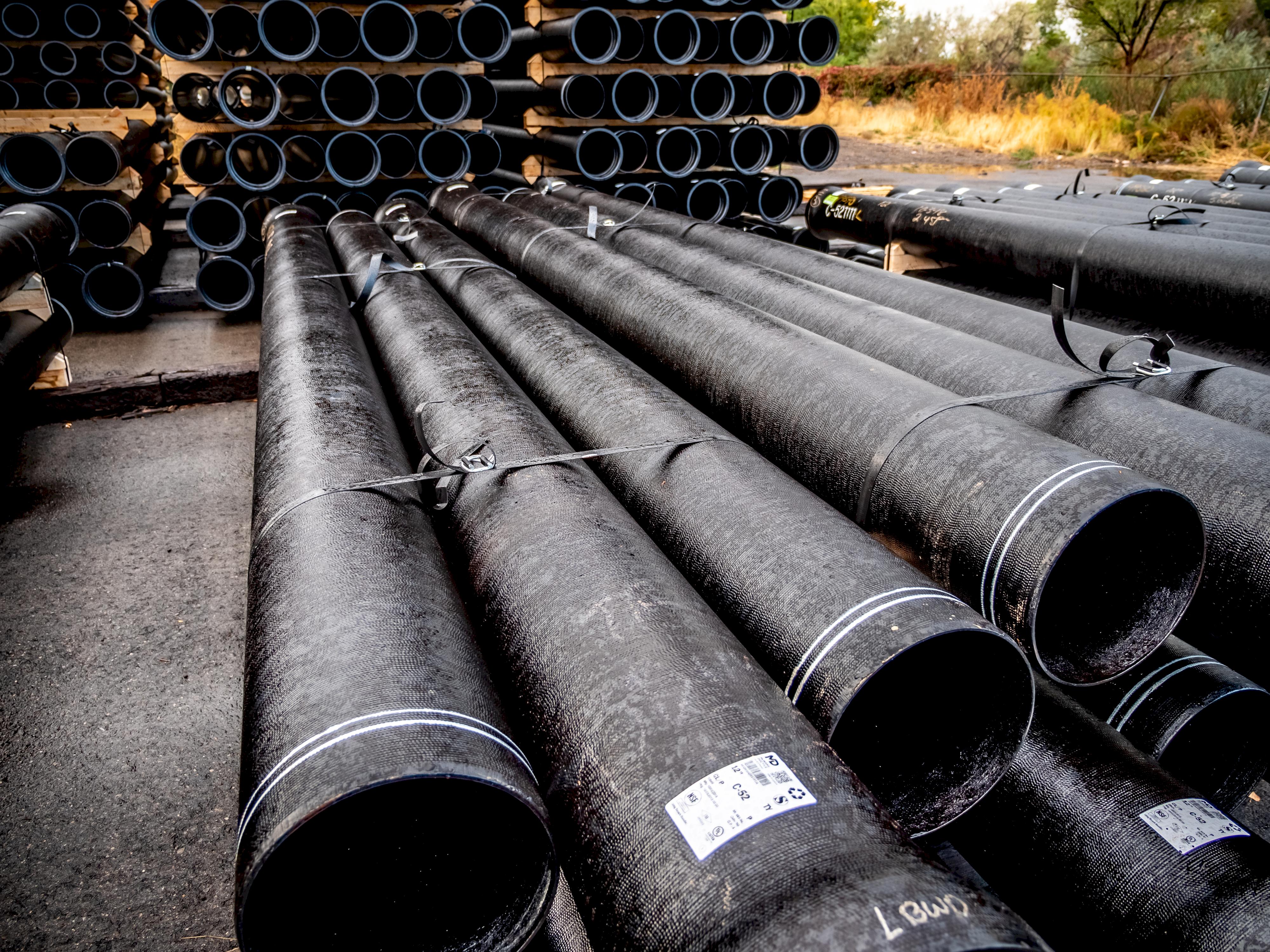

Ductile iron pipe is a type of cast iron pipe that is known for its improved mechanical properties, primarily ductility and toughness. It is produced by adding small amounts of magnesium to molten iron, which transforms the graphite structure from flake to nodular or spheroidal form, resulting in a material that is both strong and flexible.
Key Characteristics:
High tensile strength
Excellent impact resistance
Corrosion resistance (especially when lined/coated)
Long service life (50–100 years or more)
Ductile iron pipes are typically manufactured using centrifugal casting. The process involves:
Melting Iron: Scrap iron, steel, and alloys are melted in electric arc or induction furnaces.
Magnesium Treatment: Magnesium is added to modify the graphite shape.
Centrifugal Casting: The molten iron is spun inside a mold to form the pipe wall.
Heat Treatment: Pipes are annealed to enhance ductility and remove internal stresses.
Lining and Coating: Internal cement mortar lining and external zinc/bitumen or epoxy coatings are applied for corrosion protection.
Ductile iron pipes must comply with various international and regional standards:
| Standard | Region | Description |
|---|---|---|
| AWWA C151 | USA | Covers dimensions and tolerances for ductile iron pipes |
| EN 545 | Europe | Specifies pipes for potable water systems |
| EN 598 | Europe | Specifies pipes for sewage applications |
| ISO 2531 | Global | Covers ductile iron pipe systems for water and sewage |
| AS/NZS 2280 | Australia/New Zealand | Specifies DI pipes for water supply and drainage |
Ductile iron pipes are available in a wide range of sizes:
Diameter Range: DN 80 – DN 2000 (3″ – 80″)
Standard Lengths: Typically 6 meters, can be customized
Wall Thickness Classes: Class 50, Class 52, Class 54, etc.
Joint Types: Push-on (Tyton), Mechanical, Flanged, Restrained
Tip: Use a dimension table based on the selected standard (e.g., AWWA or EN) when designing a pipeline system.
To enhance durability and corrosion resistance, ductile iron pipes are lined and coated:
Internal Linings:
Cement Mortar Lining: Standard for potable water; prevents tuberculation.
Epoxy Lining: Used in aggressive wastewater and chemical applications.
External Coatings:
Zinc Coating + Bitumen: Common EN 545 requirement.
Polyethylene Sleeving: Recommended in corrosive soils (as per ANSI/AWWA C105).
Fusion Bonded Epoxy (FBE): High-performance option for severe conditions.
Ductile iron offers several advantages over other materials like PVC, HDPE, and carbon steel:
Strength and Pressure Tolerance: Handles higher working pressures and surge pressures.
Durability: Withstands heavy loads and ground movements.
Ease of Installation: Push-on joints reduce installation time and cost.
Hydraulic Efficiency: High C-factor (typically 140) ensures minimal friction loss.
Fire Resistance: Non-combustible material.
Recyclability: Environmentally friendly and sustainable.
Ductile iron pipes are widely used across various sectors:
Potable Water Distribution
Sewage and Wastewater Transport
Industrial Piping Systems
Fire Protection Networks
Irrigation and Agricultural Water Supply
Hydropower Projects
Desalination Plants
| Property | Ductile Iron | PVC | HDPE | Carbon Steel |
|---|---|---|---|---|
| Strength | High | Medium | Medium | High |
| Flexibility | Medium | High | High | Low |
| Corrosion Resistance | High (with coating) | High | High | Low (without lining) |
| Service Life | 50–100+ years | 50 years | 50 years | 20–40 years |
| Installation Ease | Moderate | High | High | Low |
| Pressure Capacity | Excellent | Moderate | Moderate | Excellent |
Ductile iron is one of the most environmentally friendly pipeline materials:
Made from up to 90% recycled content
Fully recyclable at end-of-life
Low environmental footprint when lined and coated
Long lifecycle reduces need for frequent replacement
Sustainable infrastructure projects often prioritize ductile iron for its resilience and recyclability.
Q1: How long does a ductile iron pipe last?
A: With proper installation and protection, it can last over 100 years.
Q2: Can ductile iron pipe rust?
A: It can corrode without proper coating, but internal linings and external coatings greatly reduce this risk.
Q3: Is ductile iron pipe better than PVC?
A: For high-pressure and underground applications, ductile iron is generally superior in strength and durability.
Q4: What’s the difference between Class 50 and Class 52 ductile iron pipes?
A: The class refers to wall thickness—Class 52 is thicker and handles higher pressures than Class 50.
Q5: What joint types are used in ductile iron pipes?
A: Common joints include push-on, mechanical, flanged, and restrained joints.
Ductile iron pipes stand out as a reliable and efficient solution for water and wastewater infrastructure worldwide. With superior mechanical properties, a long lifespan, and environmental benefits, they continue to be the material of choice for engineers and municipalities alike. Whether for drinking water, sewage, or industrial applications, ductile iron pipes deliver performance and peace of mind.
For sourcing high-quality ductile iron pipes that meet global standards such as AWWA C151, ISO 2531, and EN 545, always choose a trusted manufacturer with a strong track record in material integrity, delivery, and customization options.
